– Carbon Monoxide Chemical Detection Devices

Detect Carbon Monoxide on the Job Site

Produced as a byproduct of combustion, carbon monoxide is a common chemical hazard throughout multiple industries. When operating fuel-burning appliances or engines, carbon monoxide is released in the exhaust fumes. When carbon monoxide is released in an enclosed space, the concentration can increase to dangerous levels.

How can Morphix Technologies help?

ChromAir® Carbon Monoxide badges are simple, cost-effective, industry-proven solutions for carbon monoxide detection in the workplace. They use colorimetric technology (i.e. color change) to provide immediate indication when carbon monoxide is present. No need for lab analysis or electronic reader.

Carbon Monoxide detection in use

Badges designed for Carbon Monoxide detection

– Product Details

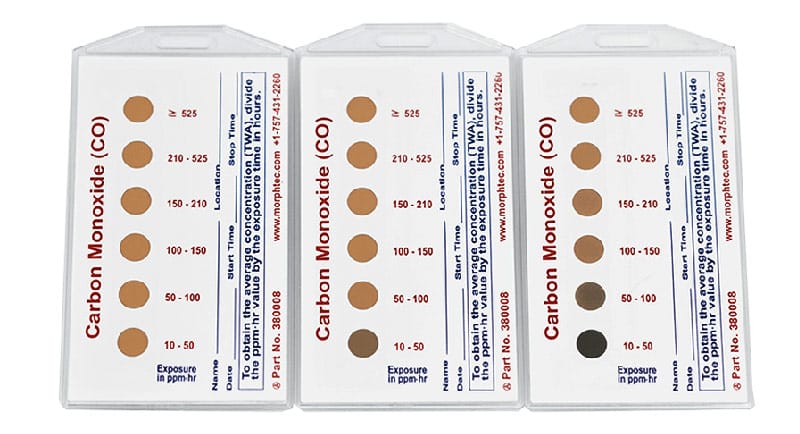

ChromAir Carbon Monoxide Badge (Part#: 380008)

Designed for effective carbon monoxide monitoring

ChromAir Carbon Monoxide badges provide an immediate visual indication of exposure dose for carbon monoxide.

When exposed to carbon monoxide, a color change forms starting from the bottom cell, and then moving up each cell to the top cell.

The highest cell with a color change indicates exposure dose level.

Key Features of the ChromAir® Carbon Monoxide Detection Badge:

  • Accurate carbon monoxide detection using colorimetric technology
  • Immediate visual response—no electronic reader or lab testing required
  • Cost-effective
  • Lightweight
  • Easy to use

Available to US customers on Amazon.com

International customers, please contact us using the information below.

Contact Now

Click here for operating instructions for ChromAir Carbon Monoxide detector badges.

Employee Monitoring

An employee wears badge near their breathing zone

Employee Monitoring

Area Monitoring

Hang badge for area monitoring

Area Monitoring

** Badge Clips Sold Separately.

Physical SpecificationsValue
Dimensions10.5 cm x 5.5 cm x 0.25 cm
Weight11 g
Color changelight brown to dark brown/black
Refrigerated shelf life1 year
Sampling ParametersValue
Exposure Dose Range10 - 525 ppm • hr
Maximum recommended sampling time48 hours
Minimum recommended sampling time5 minutes
Relative humidity range19% - 85%
Face velocity range10 - 165 cm/sec
Temperature range10°C - 45°C (50°F - 113°F)
Light effect - UV (Direct sunlight)No effect
Light effect - VisibleNo effect
Known interferencesalkenes, hydrogen sulfide, and hydrogen

By Phone:

+1-757-431-2260

For customers outside the US, email or call to be referred to a distributor.

Available on Amazon (for US customers)

Available on Amazon

Available on GSA (for US government customers)

GSA Advantage

GS-07F-0147T (Laurus Systems, Inc.)

– Frequently Asked Questions –

FAQ

Where is carbon monoxide used?

Carbon monoxide is a byproduct of combustion. Many fuel-burning appliances and engines emit carbon monoxide in their exhaust fumes. The concentration of carbon monoxide produced by these applications is generally not a cause for concern. However, when exhausted into an enclosed space without ventilation, carbon monoxide can build to dangerous levels.

What are the health effects of carbon monoxide exposure?

When too much carbon monoxide is present in the air, oxygen in red blood cells is replaced with the carbon monoxide being breathed, thereby preventing oxygen from reaching tissues and organs. This can cause headaches, dizziness, shortness of breath, blurred vision, confusion, nausea or vomiting, and eventually loss of consciousness and even death.

What are the exposure limits for carbon monoxide?

The OSHA PEL (permissible exposure limit) for carbon monoxide is 50 ppm (TWA). The NIOSH REL (recommended exposure limit) is 35 ppm (TWA).

How does a carbon monoxide badge change color?

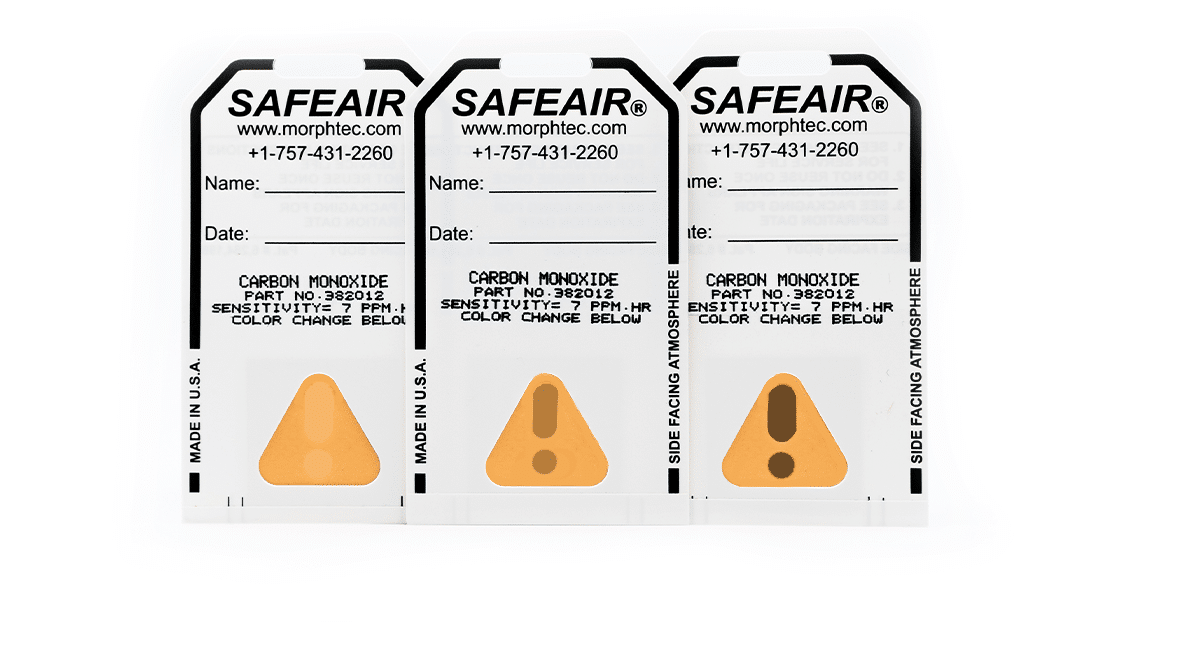

A color-forming reaction occurs when carbon monoxide reacts with the proprietary indicator layer in SafeAir and ChromAir carbon monoxide detector badges.
